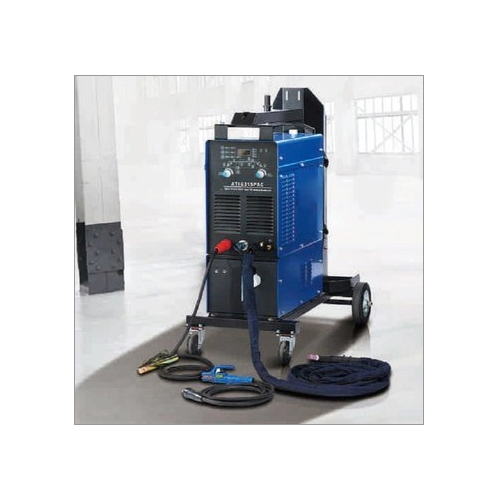

ATIG PAC 315III 500III

Model

Unit

ATIG315PAC-III

ATIG500PAC-III

Supply voltage/Phase

Volt/No

415/3

415/3

Input KVA  100% Duty cycle(MMA, DC TIG, AC TIG)

KVA

10.1/6.7/6.7

19/13.8/13.8

Welding current range(MMA, DC TIG, AC TIG)

Amp

5-315/5-315/5-315

20-500/20-500/20-500

Open circuit voltage(MMA, DC TIG, AC TIG)

Volt

74/72/73

80/86/86

Welding current  60% Duty cycle(MMA, DC TIG, AC TIG)

Amps

315/315/315

500/500/500

Welding current  100% Duty cycle(MMA, DC TIG, AC TIG)

Amps

244/244/244

387/387/387

DC Pulse frequency

Hz

0.2-999

0.2-999

Pulse Duty cycle

%

15-85

15-85

AC frequency

Hz

40-250

40-250

Balance range

%

-50-40

-50-40

Pre-gas/post-gas time

S

0-10/0-60

0-10/0-60

Initial/final current

A

5-315

20-500

Up-slope/down-slope time

S

0-10/0-15

0-10/0-15

Trigger mode

2/4T, spot and repeat

2/4T, spot and repeat

Spot weld time

S

0-10

0-10

Job channels

No

30

30

Power factor

0.95

0.95

Efficiency

77%

77%

Type of cooling

Type

Controlled air

Controlled air

Dimensions(L*W*H)

mm

636*322*560

660*355*778

Class of insulation

Class

H

H

Weight(kg)

Kg

53

80

Water cooling unit

Model

SLJ-10/20/package kit

SLJ-10/20/package kit

Voltage

380 +-10%V

Size/Dimension

655x324x546 mm

Brand

Aotai

Pulse Frequency

0.2-250 AC /0.2-999 DC

Welding Type

TIG Welding

Capacity

13.6 KVA

Duty Cycle

60%

Output Current Range

315 A

Model Name/Number

ATIG-PAC-315III

Phase

Third Phase

Automation Grade

Semi-Automatic

Weight

53 kg

Frequency

50 Hz

Usage/Application

Industrial
